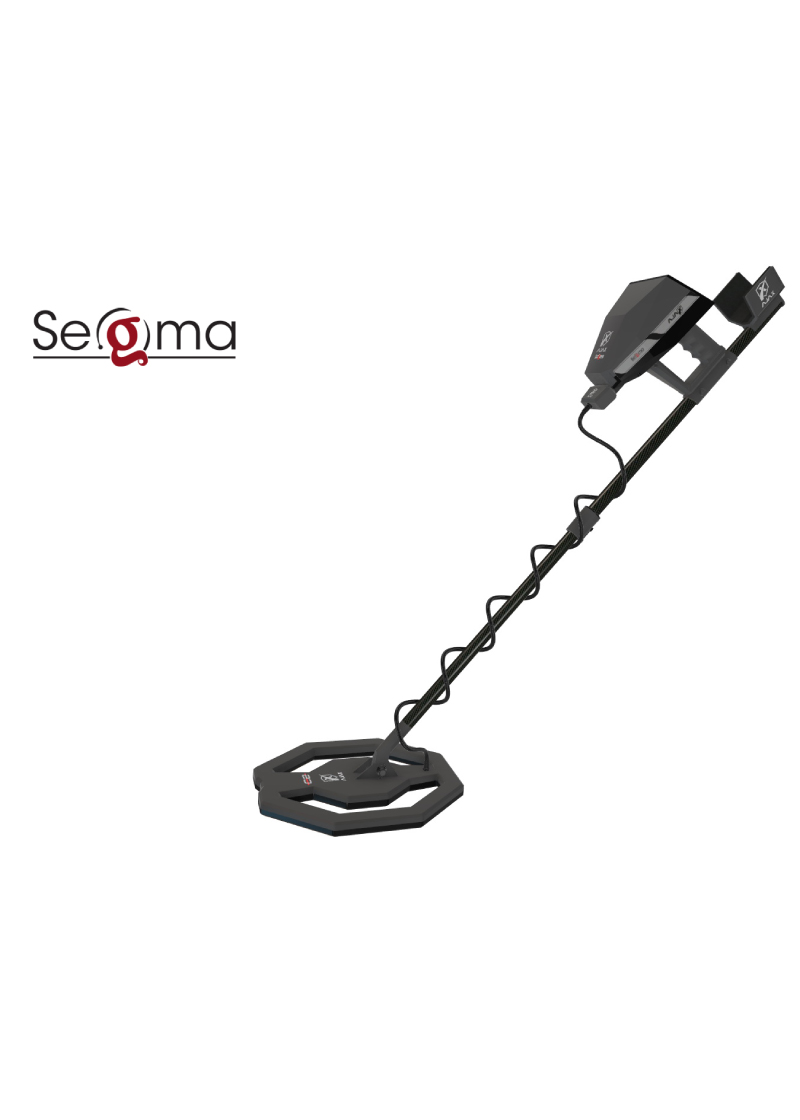

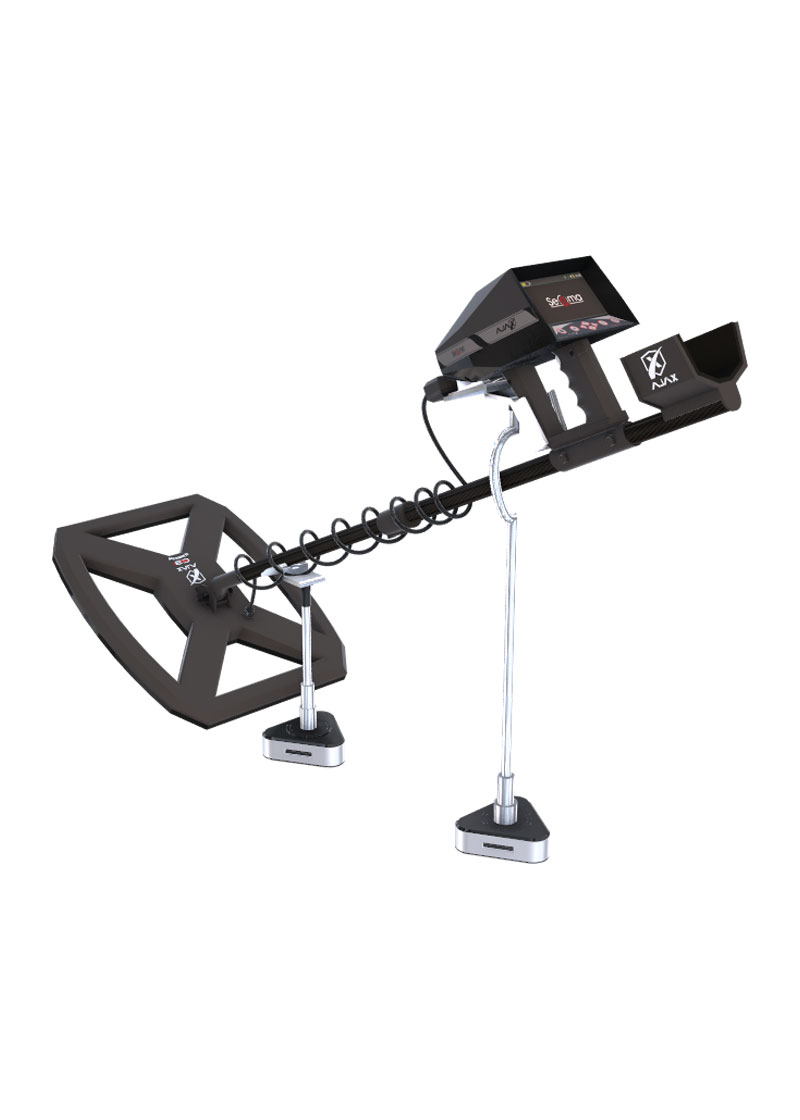

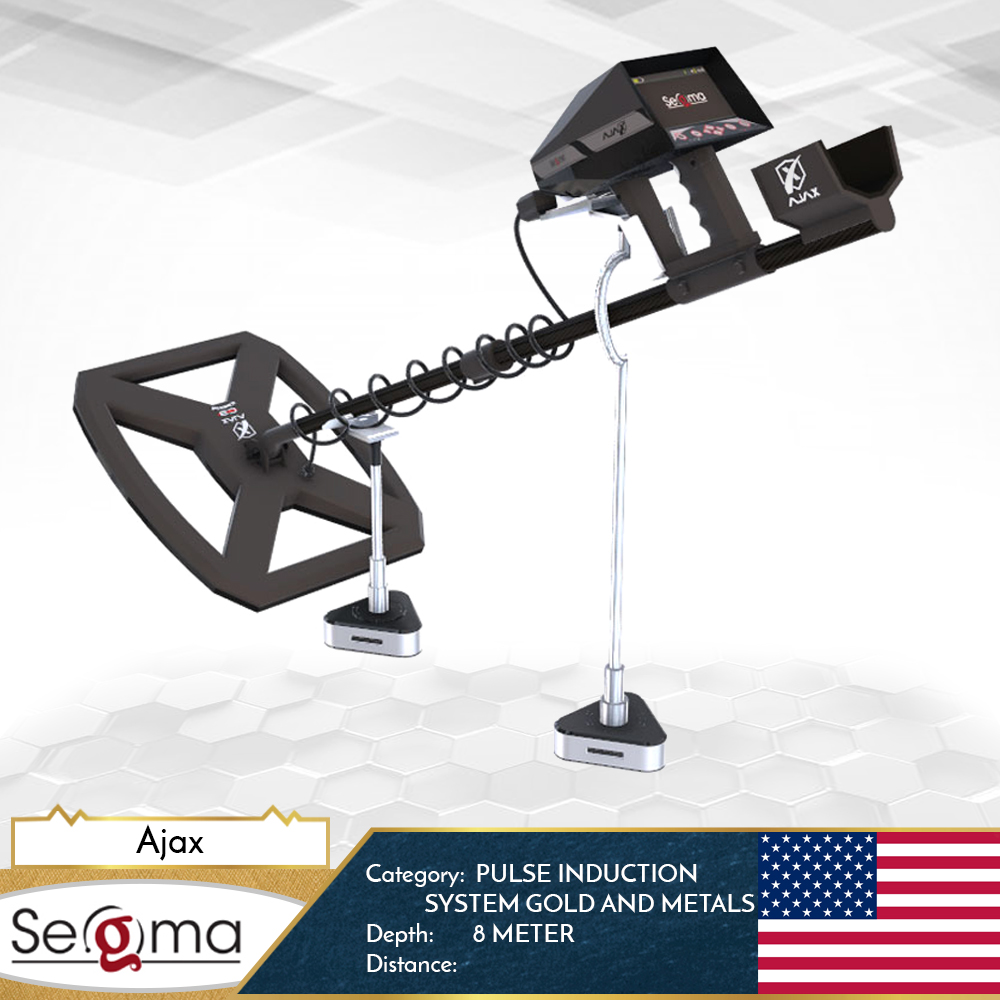

SEGMA – Multi Detection system

3.900,00 (Export Price)


Additional information

Product Description

The new SEGMA device will alowe you to detect your target and to find your location very easy and fast as other devices on the market.

The SEGMA device are working with an amaizing new systems as SMART-PULSE (puls induction) and SPECTRUM-ANALYZER. those two systems will give you a fast moving and comfort during the using and operations.

The SEGMA is the only device on the market which can detect and support 8 meters depth with Puls Induction system.

SEGMA has a few special characteristics:

  • Segma has a great detection systems which combining the puls induction and the 3D screen, its means that you can see the target on the 3D screen and even the size of the object.
  • A special design and comfort, leight weight and easy program to operating.
  • A 5 inch colorful screen to show and to present you the object including simulation on live.
  • An easy access to the main battery, very efficiant in case that you would like to change the battery during the years.
  • The battery using time is over 5 hours including the screen operation and all the signals reactions. the device has also a power bank plug to charge the battery and even the posibility to continu to work more extra 5 hours.
  • The device has an headphone output, to be connected and to hear all the reaction from the main device.
  • Control keys interface with an anti-shock humidity which works by button, and gives you a control for the program and settings of the device on the screen.

The GEMA system can detect between ferrous and nonferrous metals, also identify spaces and caves. The distinction between the objects and targets will present you on the interface through differents sizes on the oscilloscope window .

The GEMA interface will allow you to operate the device throght this options:

  • reduce and to control over the response speed and sensitivity.
  • you can control and cancellation the search for ferrous metals.
  • to set and to program the frequency required the size of the coil.
  • A quick ground calibtation on every types of soils.

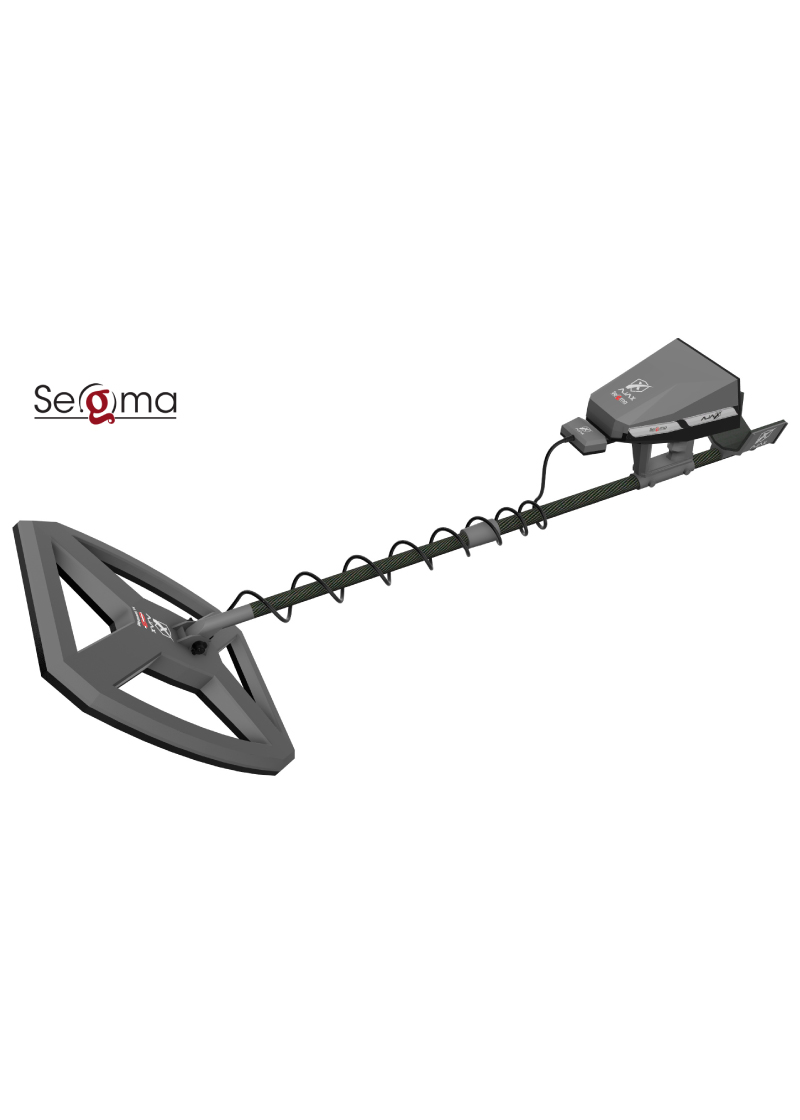

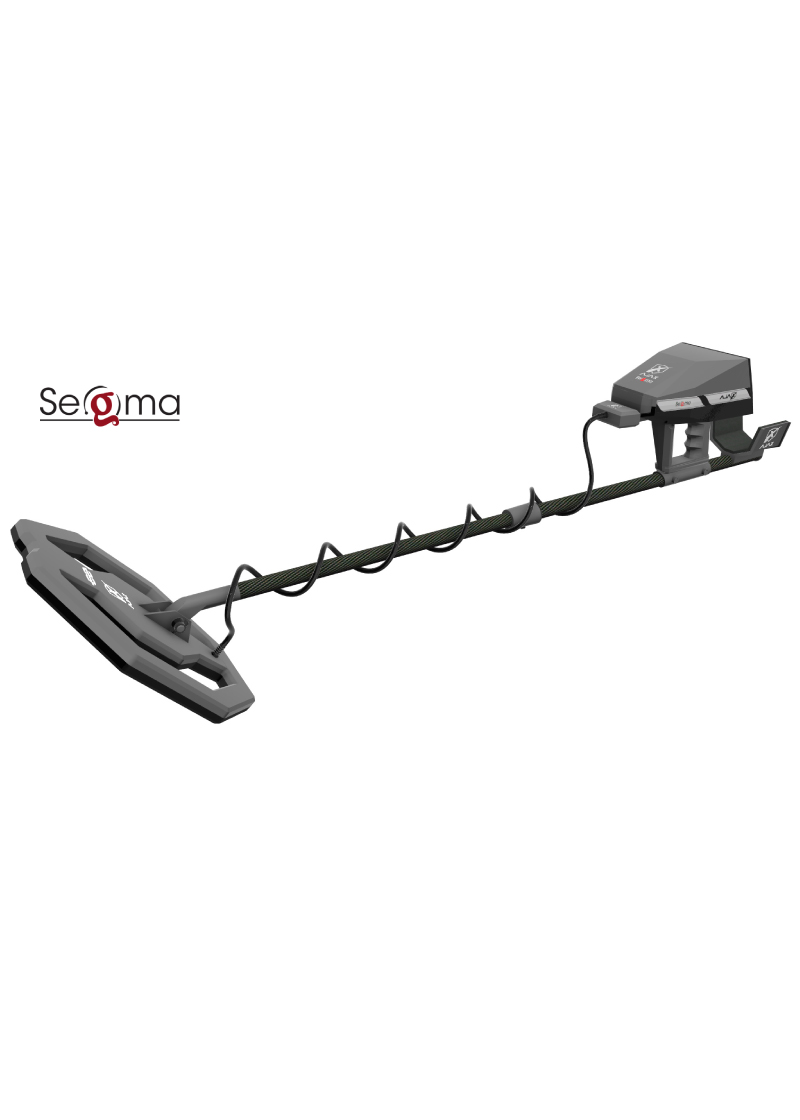

  • The Gema puls induction system is available with 3 different coils size: C1: 18 cm x18 cm ,C2: 35 cm x35 cm ,40 cm x45 cm.
  • Maximum Depth8 meters.
  • It can detect non-precious targets, for example: iron, non-ferrous metals for example: gold – and cavity as well.
  • Frequency detection – 280 Hz -300 Hz-350 Hz.
  • Sound effects are imaging through vibrational effects and acoustic .
  • Digital indicators interactive response indicators that explain the type and size of the detected target.
  • Ground Balance are automatic or manual.



The Spectrum analyzer is a special development that translate the Puls Induction reaction through a 3D imaging screen.

You can see the size and the shape of the object, trough the 3D imaging screen and will help you to analyze your target before you start to dig.

This system will let you to see the difference between  ferrous and nonferrous over the screen with a very hight reaction and presentation over the interface.

Technical specifications

Research Principle Multi-detection systems and functions, contains 2 optional systems
Operating Principle Processing data and digital signals and converting them to visual and audible results
Type of processing Multiprocessing
Operation processor 32 Pit MICROCONTLLER
Display Screen TFT colorful screen with 800 x 480WVGA size, 16-bit color depth
Basic battery 7.4 volts, 3300 mA
Power consumption Average consumption 400 mA
Basic Battery Hours (5 hours) and it may different regarding on screen brightness settings, sound levels and other functions that may be in playback mode.
Power Bank Hours 10 hours
Electric charger Power supply / power input 240-100 V AC, power output 15 V 1.2A
Power Storage External backup battery 11.1 volts, 7800 mA with two power outputs. Power Output USB: 5 Volts 2.1 Amps, for general use (Mobile phone, Tablet phone, Tablet PC). Device Power output: 11.1 volts 3 amp.
storage capacity 1 GB / it can save to 999 scans.
Sound High quality sounds, 32 KBIT/S, MP3
Sound notifications Yes, with full control of sound levels in all functions.
Vibrating Alert Yes, (optional)
Bluetooth No, not available.
Languages Yes, multilingual, with 8 languages
date and time Yes
password Yes, resettable / or canceled password
Dimensions (Big coil) 144x40x24 cm Stick as long as possible121x40x24 cm Stick as short as possible
Dimensions (Medium coil) 142x35x24 cm Stick as long as possible119x35x24 cm Stick as short as possible
Dimensions (Small coil) 144x24x18 cm Stick as long as possible121x24x18 cm Stick as short as possible
Dimensions 88x52x20 cm
Full weight in bag 6.5 kg
Weight for assembly Ranging from 1.5 kg to 2.2 kg, depending on the sensor connected to the device.
Operating temperature From 10° C to 60° C
Storage temperature From 10° C to 80° C
Humidity It can be stored and operated at 100% humidity.
