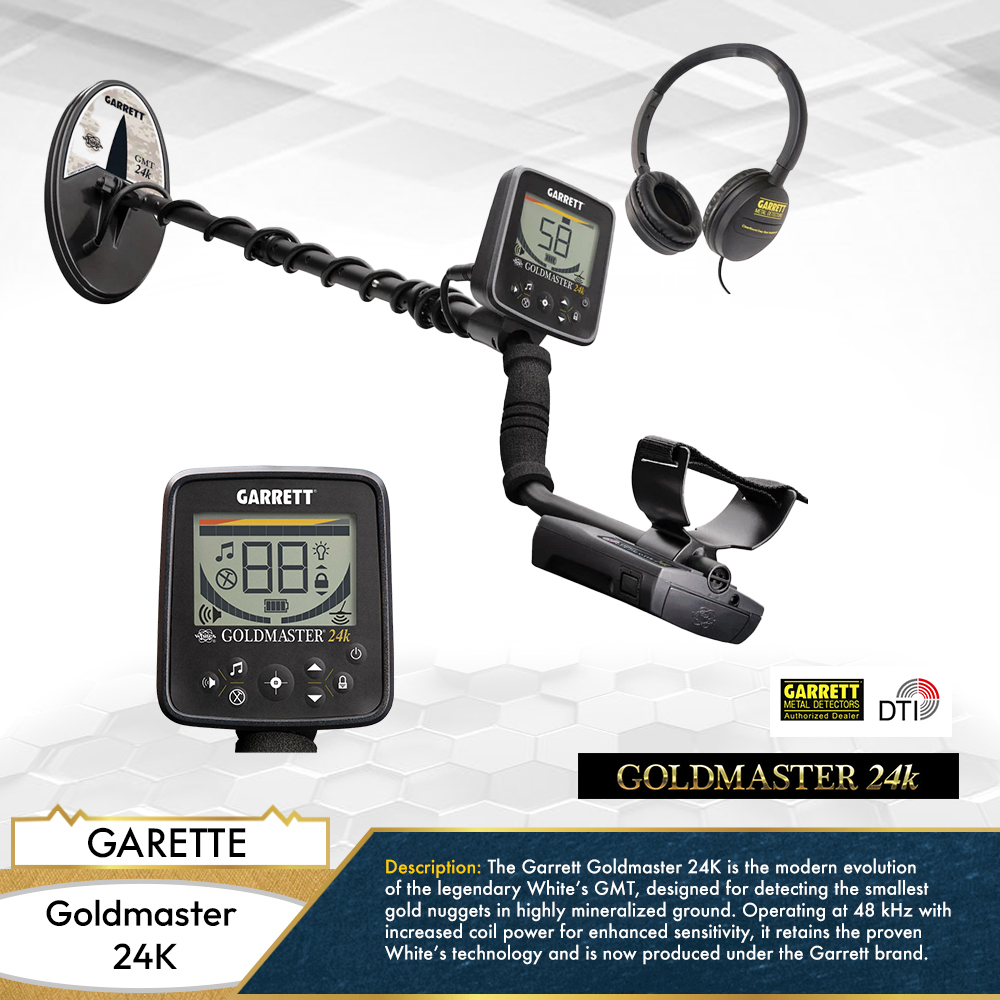

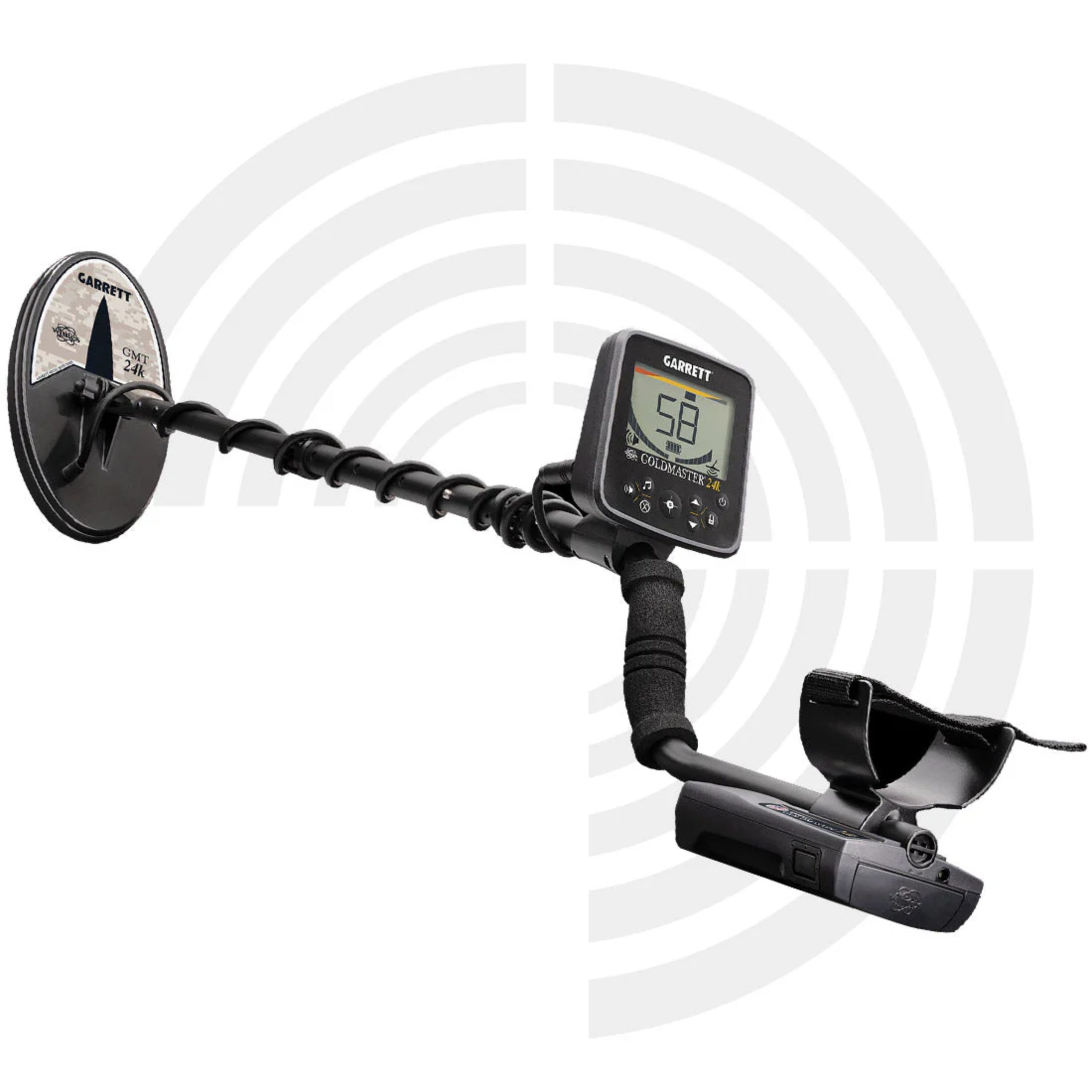

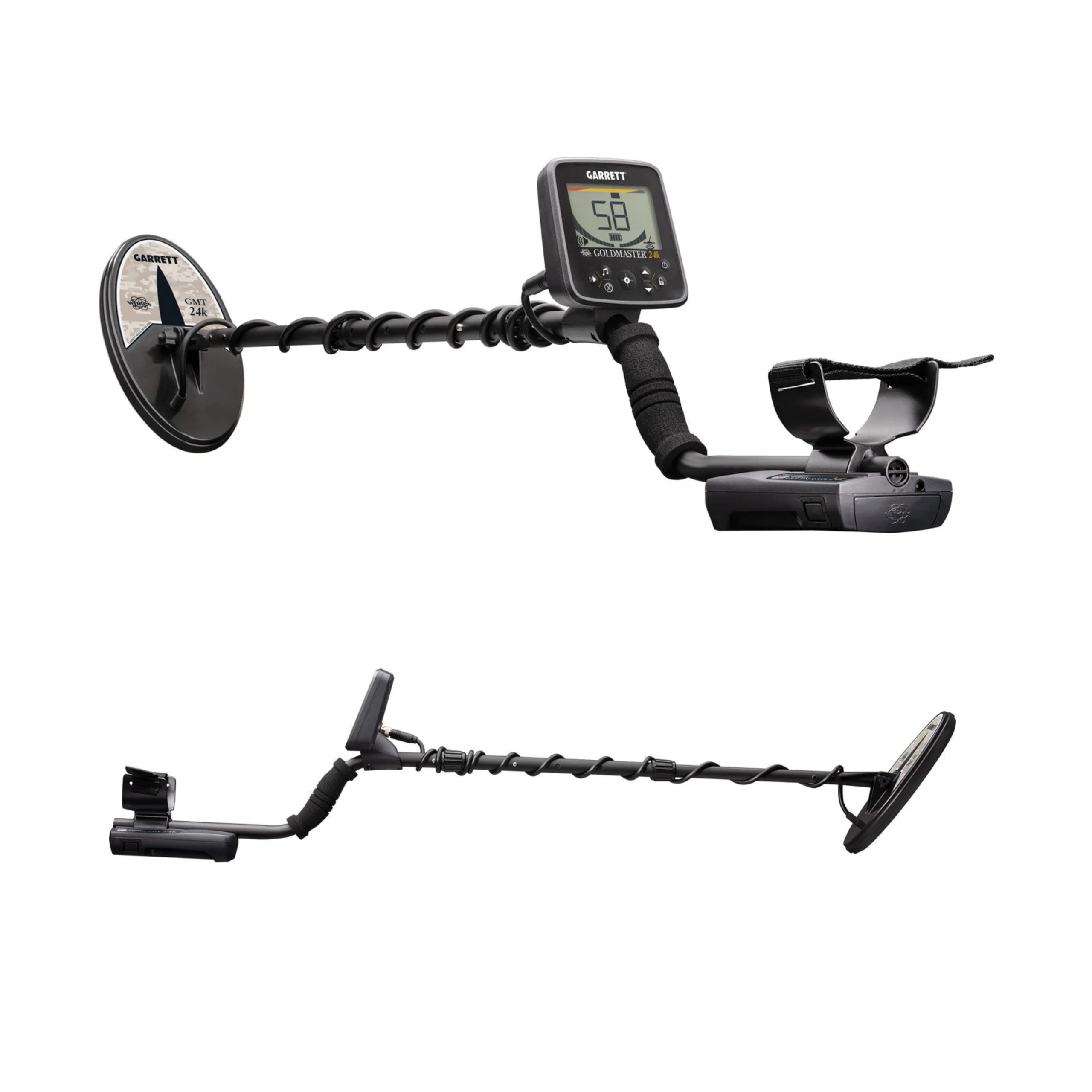

The Garrett Goldmaster 24K is a high-performance gold detector engineered for maximum sensitivity and impressive depth, making it ideal for serious gold prospecting.
Operating at 48 kHz, it excels at detecting everything from tiny natural gold nuggets to larger targets, even in highly mineralized and challenging ground conditions.

Built on proven technology refined by Garrett, the detector offers stable performance, advanced ground handling, and excellent ergonomics with a lightweight adjustable design.
Suitable for rivers, mountains, deserts, and remote prospecting locations, the Goldmaster 24K is also capable of detecting jewelry, relics, silver, and other valuable targets with outstanding reliability.

Key Features

• 48 kHz High-Frequency Technology optimized for detecting fine gold and tiny nuggets
• Enhanced Coil Performance with increased coil voltage for greater sensitivity
• XGB Ground Balance System for improved operation in mineralized soils
• Iron & Hot Rock Rejection to reduce unwanted targets and false signals
• vSAT Technology for stable performance across changing ground conditions
• Ground-Sync & TracLock for fast and accurate ground balancing
• Ground Scan Function to visualize mineralization levels in the soil

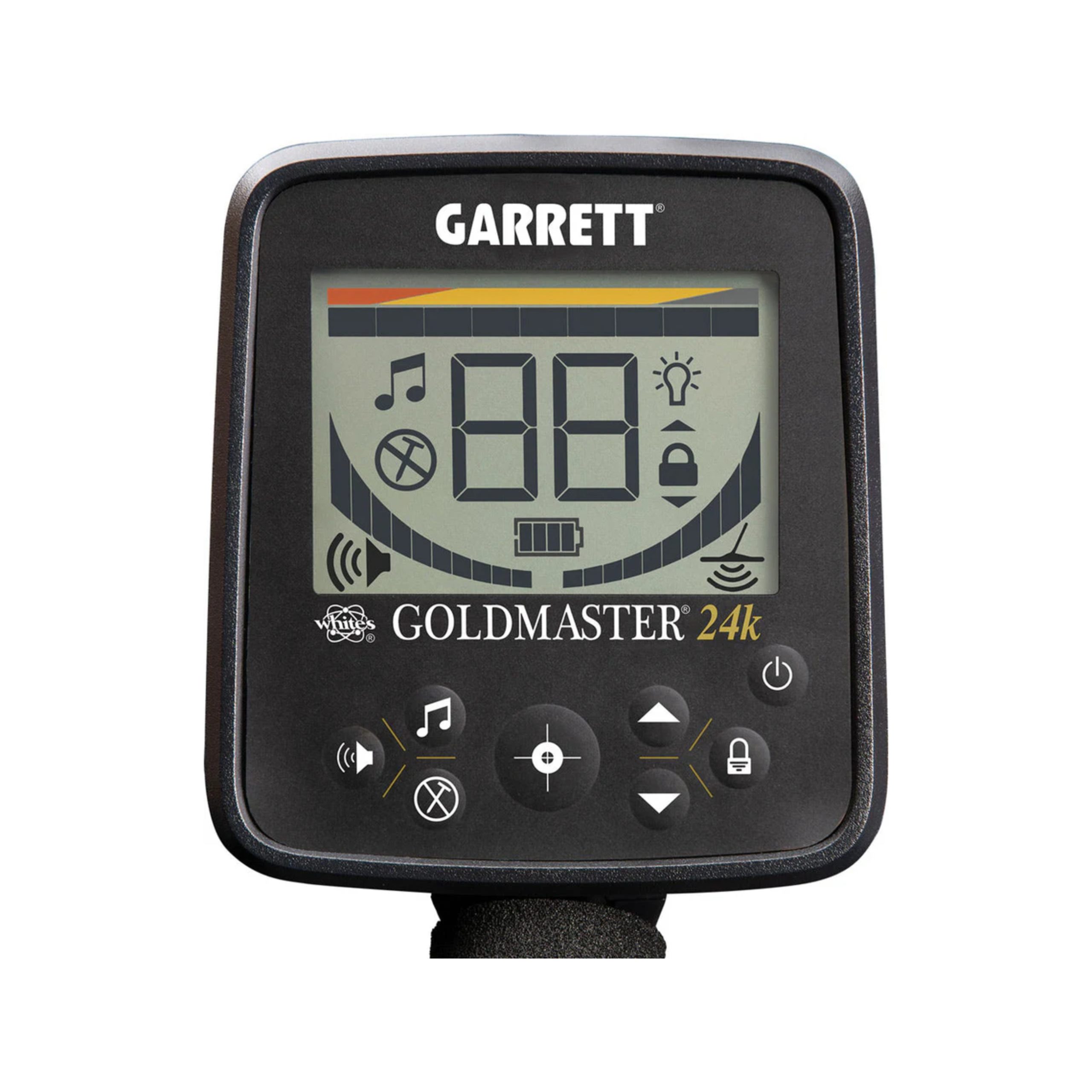

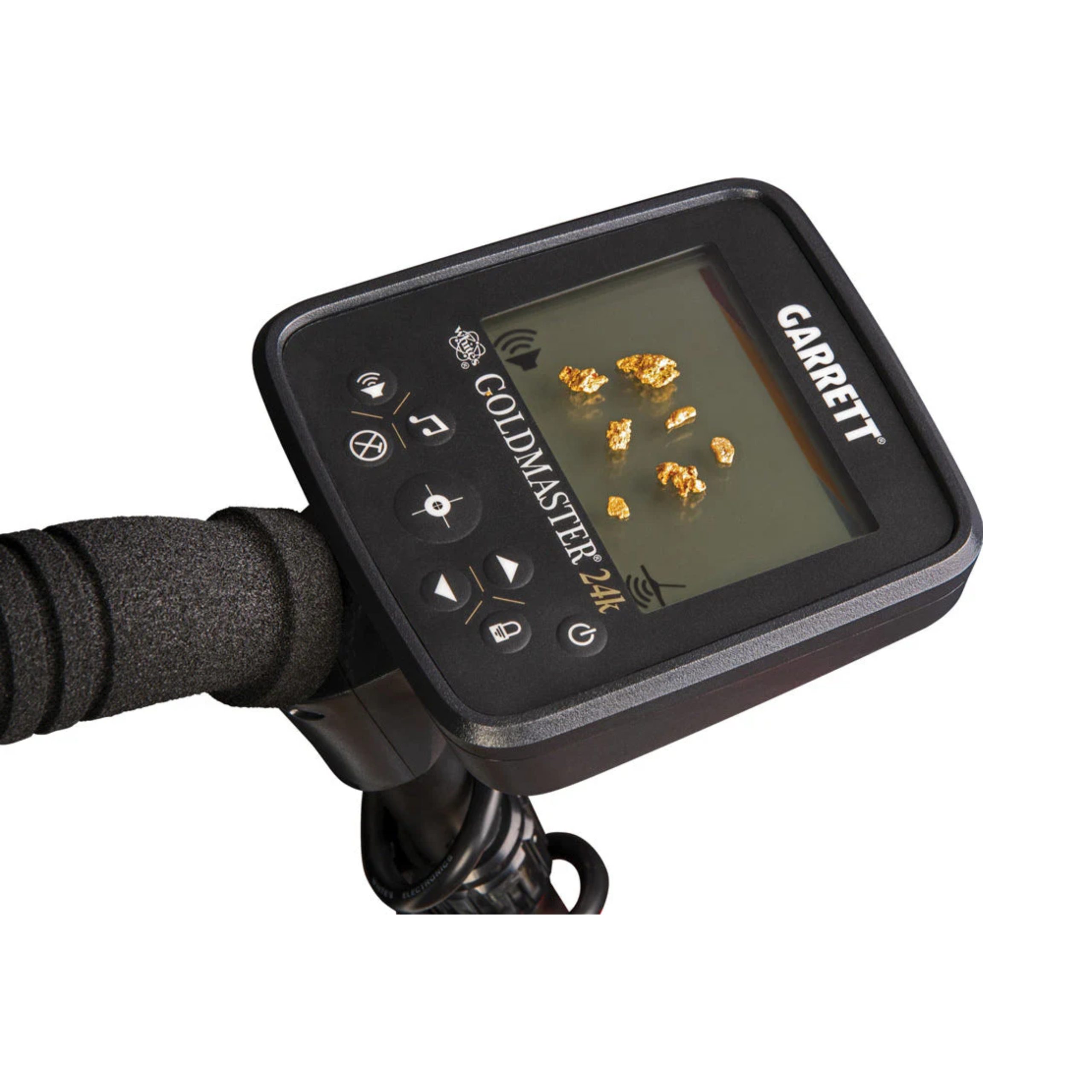

• Target ID Display with visual bar graph and numeric target identification
• Backlit Screen for clear visibility in low-light environments
• Pinpoint Mode for precise target location and recovery
• Waterproof DD Search Coil designed for reliable performance in various terrains
• Compatible with an optional 6” × 10” DD elliptical search coil for added versatility

Technical Specifications

• Operating Frequency: 48 kHz (Single-Frequency Induction Balance)
• Search Modes: Beep Mode, Proportional Audio Mode, Ground Scan, and Pinpoint
• Target Identification: 2-digit numeric Target ID with visual display
• Iron Discrimination: Adjustable Iron Cancel (LO/HI)
• Pinpoint Function: Non-motion pinpointing for accurate target recovery
• Ground Balance: XGB System with Automatic, Manual, and TracLock modes
• Sensitivity Control: Adjustable
• Threshold Control: Variable Self-Adjusting Threshold (vSAT)
• Display Backlight: Yes
• Ground Scan Feature: Yes
• Wireless Compatibility: Optional Z-Lynk Wireless System
• Search Coil: 6” Waterproof DD Concentric Coil
• Water Resistance: Waterproof search coil; splash-resistant control housing
• Power Supply: 8 × AA NiMH rechargeable batteries (charger included) or 8 × AA alkaline batteries
• Battery Life: Up to 45 hours
• Warranty: 2-Year Manufacturer Warranty

Package Contents

• Garrett Goldmaster 24K Control Unit
• S-Style Upper Shaft with Armrest & Strap
• Camlock Middle Shaft
• Camlock Lower Shaft
• 6” Waterproof DD Concentric Search Coil with Cable
• Search Coil Cover
• Mounting Hardware (Wing Nut, Bolt & Rubber Washers)
• 8 × AA NiMH Rechargeable Batteries
• Battery Charger with International Adapters
• 12V Vehicle Charging Cable
• Headphones with 3.5 mm Adapter & Dust Cap
• Velcro Cable Straps & Protective Rubber Feet
• User Manual & Warranty Card
• 2-Year Manufacturer Warranty

Additional Information

The Garrett Goldmaster 24K is a specialist gold detector designed for exceptional performance in highly mineralized ground. Featuring advanced 48 kHz VLF technology, XGB multi-point ground tracking, and ground-scan visualization, it offers outstanding sensitivity to fine gold and small nuggets while maintaining stable operation in challenging environments.

Note: The search coil is fully waterproof, while the control housing is splash-resistant but not submersible. The detector can operate using the included rechargeable NiMH batteries or standard AA alkaline batteries.

Garrett Goldmaster 24K User Manual (English)

https://www.german-oem.de/wp-content/uploads/2026/05/Garrett_Goldmaster_24k_Anleitung_EN.pdf
